Diverse 8 tot 50 poorts switches
Hierbij bied ik een deel van mijn verzameling switches aan.
Alle prijzen zijn richtlijnen en zijn onderhandelbaar.
Compaq SW5450 (layer 3) - €60
Features:
- 10/100Base-TX Ports: 48
- 1000Base-SX Ports: 2
- Redundant PHY Port: 2
- GBIC modules: Yes
- Layer 2 MAC Address Support: 128,000
- Layer 3 Routes: 64,000
- QoS Flows: 32,000
- Internal Bandwidth: 32 Gb/s
- Internal Throughput: 17.5 Gb/s
- Buffer memory: 4MB Dynamic
- L2 Forwarding Rate: 10.1 Mp/s
- L3 Forwarding Rate: 10.1 Mp/s
- Port Trunking: 2 or 4 port groups
- Automatic Load Balancing (ALB) support: Yes
- Hunt Groups: Yes
- 802.1Q VLAN Tagging: Yes
- 802.1p Priority: Yes
- VLANs: 256 per Switch
- Layer 3 IP Routing: Yes
- Quality of Service: Yes
- Management Software: Included
- SNMP: Yes
- RMON Agent: Groups 1-4
- Web-based Management: Yes
- TELNET and VT-100 CLI: Yes
- 802.1d Spanning Tree: 64 Instances
Nortel BayStack 350-24T + Nortel 400-4TX - €40
Features:
- High-speed forwarding rate—1.6 million packets per second peak
- Learning rate—1.6 million addresses per second peak
- Spanning Tree Protocol—IEEE 802.1D standards compliant
- Store-and-forward switch—full performance forwarding at full line speed
- Simple Network Management Protocol (SNMP) agent support
- Service port for console connection—allows users to locally or remotely configure and manage the switch
- Support for up to four simultaneous TELNET sessions with optional protection
- Event logging
- IEEE 802.3u-compliant autonegotiation ports, with four modes
- Remote monitoring (RMON)
- Port-based virtual LANs (VLANs)
- Upgradeable device firmware in nonvolatile flash memory using Trivial File Transfer Protocol (TFTP)
2x 3Com SuperStack II Switch 3300 (3C16980) - €25 p/s óf €40 samen
Features:
- Total ports: 24 autosensing 10/100 Ethernet, 1 matrix, 1 expansion slot
- Media interfaces: 10/100BASE-TX/RJ-45; optional 100BASE-FX/SC, 1000BASE-T/RJ-45, 1000BASE-SX/SC, 1000BASE-FX, 1000BASE-LX/SC
- Matrix port for connecting units in the Switch 1100/3300 family to form a stack
- Ethernet switching features: Store-and-forward, full-/half-duplex auto-negotiation, port trunking, 802.1Q VLAN support, 802.1p traffic prioritization
- Connects to Redundant Power System / Uninterruptible Power System
- Management: Embedded Web server for direct management
- 19-inch rack or stand-alone mounting

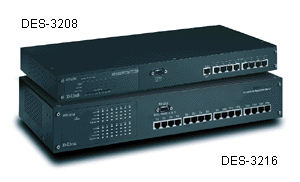

D-Link DES-3208 - €15
Features:
- 8 high performance N-way ports all operating at 10/100 Mbps for connection to servers and hubs. All ports can be auto-negotiated between 10Mbps/100Mbps, Half-duplex or full duplex connections.
- Uplink/MDI-II (media dependent interface) port for uplink to another switch, hub or repeater.
- RS-232 DCE console port for diagnosing the Switch via a connection to a PC and Console/Out-of-band management.
- MII (Media Independent Interface) flexible media connection port for connection to different physical layer devices (e.g. fiber)
- Store and forward switching scheme capability to support rate adaptation and protocol conversion.
- 8K active MAC address entry table per device with self learning and table aging.
- Supports broadcast storm rate filtering.
- RS-232 console port for out-of-band network management via a PC.
- Fully configurable either in-band or out-of-band control via SNMP based software.
- Flash memory for software up-grade. This can be done inband via BOOTP/TFTP. D-View or out-of-band console can also initiate a download request.
D-Link DES-3216 - €25
Features:
- All 16 ports auto-negotiate 10/100 Mbps.
- The DES-3216 can be managed in three ways: Local Console Management, Telnet and SNMP.
- Supports Cut-through and Store-and-Forward switching.
- Wire-speed packet filtering and forwarding for up to 16 ports.
- Eight thousand active MAC address table entries per device with self-learning and table aging.
- The DES-3216 supports SNMP for RFC 1213, RFC 1757, and RFC 1493.
- VLAN support for eight broadcast domains.
- Port Trunking support for bandwidth aggregation between two DES-3216 switches.
Afhalen in Nijmegen; verzenden in mogelijk.
Voor €150,- is de hele partij verkocht.
(Ik hoop dat niemand deze lange post als ververlend / spam ervaart)
